Description
FASTINER Heavy-Duty Wedge Anchor 3/4″ x 10″
Maximum Strength for Structural Concrete Applications
The FASTINER Heavy-Duty Wedge Anchor 3/4″ x 10″ is engineered for critical structural fastening applications requiring exceptional tension and shear performance in concrete. Designed for commercial, industrial, and infrastructure projects, this anchor delivers superior holding power and long-term reliability in 4,000 PSI concrete.
Ideal for securing structural steel, columns, machinery, equipment, base plates, handrails, and heavy-duty support systems.
Key Features
High Load Capacity
Designed for demanding structural applications with exceptional tension and shear strength.
Heavy-Duty Expansion Design
Provides secure anchoring through proven mechanical wedge expansion technology.
High-Strength Steel Construction
Manufactured for maximum durability and performance under heavy loads.
Professional Installation
Fast and reliable installation for commercial and industrial construction projects.
Code-Compliant Performance
Tested and approved to meet major industry standards and building code requirements.

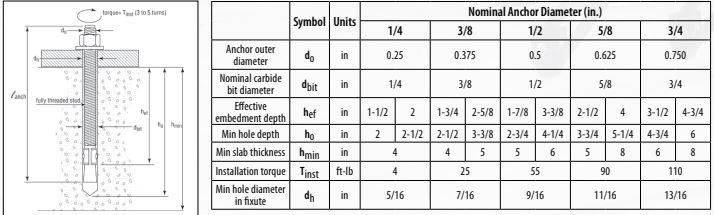

Technical Specifications
| Specification | Details |
|---|---|
| Product Name | Heavy-Duty Wedge Anchor |
| Diameter | 3/4″ |
| Overall Length | 10″ |
| Thread Size | 3/4″-10 |
| Thread Length | 5-3/4″ |
| Minimum Installation Depth | 3-1/2″ |
| Minimum Material Thickness | 6″ |
| Maximum Material Thickness | 6″ |
| Minimum Installation Torque | 110 ft-lb |
| Maximum Installation Torque | 110 ft-lb |
| Packaging | 100 Pieces per Pack |
| Installation Base | Solid Concrete |
Performance Data (4,000 PSI Concrete)
| Performance Rating | Value |
|---|---|
| Ultimate Tension Strength | 10,840 lb |
| Ultimate Shear Strength | 13,720 lb |
| Maximum Ultimate Shear Strength | 23,740 lb |
Industry Certifications & Standards
Compliant with:
- ACI 355.2
- ICC-ES AC193
- UL Listed
- FM Approved
- A-A-1923A Type 4
- 2006 International Building Code (IBC)
- 2009 International Building Code (IBC)
Applications
Ideal for:
- Structural Steel Connections
- Column Base Plates
- Industrial Equipment Mounting
- Machinery Installation
- Pipe Supports
- Handrails & Guardrails
- Concrete Foundations
- Heavy-Duty Construction
- Infrastructure Projects
- Commercial Buildings
Benefits
✔ Exceptional holding strength
✔ High tension and shear performance
✔ Reliable concrete anchoring
✔ Fast installation
✔ Industry code compliant
✔ Professional-grade construction
✔ Long-term structural reliability
Why Fastiner
- Reliable German-made tools
- High performance without overspending
- Strong after-sales support
- Better profit margins per job
Final Decision
You can:
Overpay for big brands Or compromise on low-quality tools
Or choose FASTINER –, and get the best of both worlds.
