Description

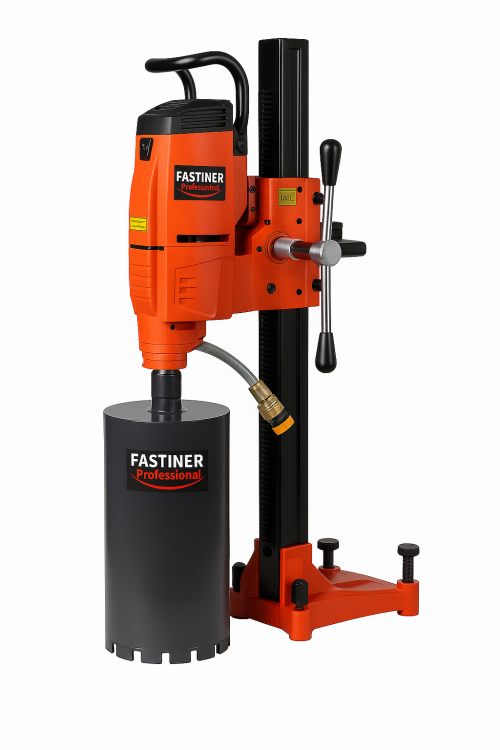

FD200 Diamond Core Drill – Fastiner Professional

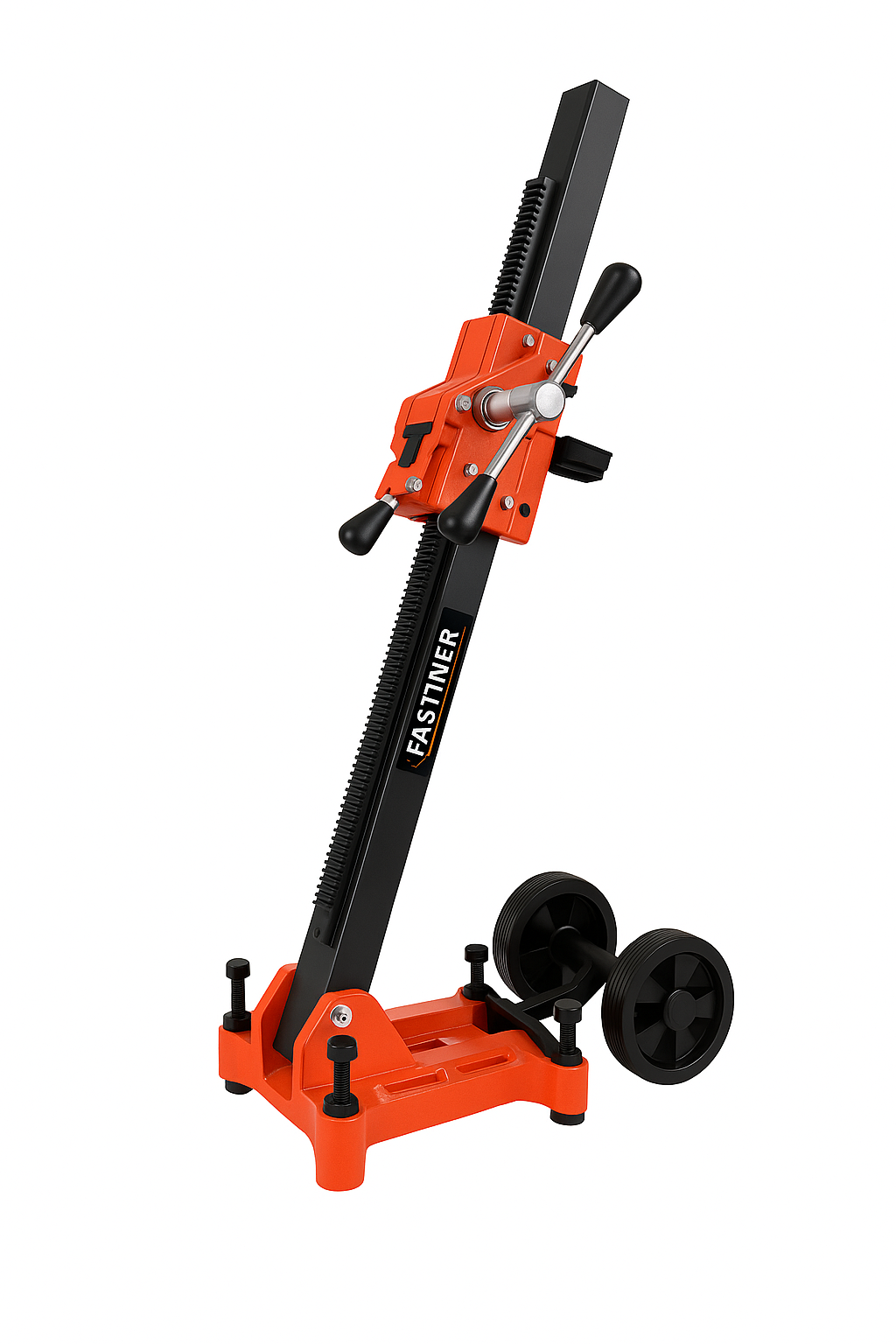

COMBO (( MOTOR + STAND + STAND WHEEL)
Built for professional contractors – Power, precision, and durability that outperforms the Hilti DD200… at a fraction of the cost.
Technical Specifications
- Motor Power: 2800W High-Torque Performance
- Speed: 3-speed digital control (0–1200 rpm)
- Max Drilling Diameter: Up to 400mm with rig / 200mm handheld
- Chuck Type: 360° Quick-Release System
- Weight: 14.5 kg (motor unit only)
- Voltage: 220–240V / 50–60Hz
- Cooling: Dual internal water-fed system
- Safety: Overheat + Overload Protection
- Torque: +15% more than average drills in this class
What’s in the Box
- FD200 Core Drill Machine
- Internal water cooling tube
- Tool-free connector & service keys
- User manual & training guide
- ✅ 2-Year Full Warranty – ZERO repair cost
Ideal Applications
- Electrical & Plumbing installations
- HVAC & Fire suppression systems
- Concrete core drilling (slabs, columns, walls)
- Granite, stone, and tile cutting
- Commercial & infrastructure projects
Why Choose FD200?
- More power than Hilti DD200 – at 1/5 the price
- Designed for both handheld & rig use
- Lightweight, heavy-duty – zero compromise
- 2-Year Warranty – No hidden costs, no downtime
- Trusted by professionals across the USA
| Feature | FD200 by Fastiner | Hilti DD160 (for comparison) |
|---|---|---|
| Rated Power | 2800W High-Torque Motor | 2600W |
| Speed Control | 3-Speed Digital Control + Load Sensor | 3 Mechanical Gears |
| No-Load RPM | 0–1200 rpm | 265–1120 rpm |
| Max Drilling Diameter | Up to 200mm (10”) with rig | 200mm |
| Handheld Core Drilling | ✅ Up to 200mm manually | Not designed for handheld drilling |
| Chuck System | 360° Quick-Release Chuck | BL Chuck |
| Weight | 12.5 kg (motor only) | 12.7 kg motor / 32 kg with stand |
| Safety Features | Overheat Protection + Overload Cut-off | Basic overload protection |
| Cooling System | Internal Dual Water Cooling | Standard water feed |
| Voltage | 220–240V / 50–60Hz | 230V |
| Torque Output | +15% Higher than most drills in this class | — |
| Use Case | Concrete, Reinforced Concrete, Tile, Granite | Primarily for concrete |
The Fastiner FD200 is built for professionals who demand superior core drilling performance. With its 2800W high-torque motor and 3-speed precision control, it powers through reinforced concrete up to 400mm in diameter.
